A frameless shower is relatively less noticeable due to reduced visual obstruction. At the same time, the hardware also has several other functions. Hinges are for doors; clamps secure glass; support bars prevent displacement; handles need a rotary mechanism; seals control the gap of water infiltration. Therefore, in the selection of hardware, it is convenient to start with the enclosure and then add a finish. Advance preparation of the position of the door, glass thickness, panel size, opening direction, fixed-panel support and nearby clearance is needed. If the foundation is stable, then it will be relatively simple to build and use the whole building.
Start With the Shower Layout
Begin with a real-life glass arrangement. A door directly next to a wall is different from a hardware problem involving a door installed in a fixed glass panel, and a sliding system has tracks, guides, etc., clearance issues.
- Wall-to-Glass Hinged Doors
- Glass-to-Glass Hinged Doors
- Pivot Shower Doors
- Sliding Shower Doors
- Fixed Walk-in Shower Panels
The Load Movements vary according to the different arrangements. A wall-to-glass hinge is relatively dependent on the construction and fixing of the wall. Glass-to-glass hinges are used, and some of the door load is borne by the fixed panel; therefore, the stability of this panel needs to be considered in conjunction with the hinge and will not be checked later.
Shower Door Hinges Need More Than a Weight Rating
First, the fitter will determine the weight of the hinge in kilograms that needs to be supported, but this information alone is not sufficient to select a suitable hinge.
Door Width is the general case. A larger panel has a longer lever arm from the hinge axis and is thus easier to operate near the centre of mass. Collect the thickness of the glass, door height and width, estimated weight, number of hinges, mounting arrangement, etc. Only the weight data are not sufficient to identify fraud.
Generally speaking, the thickness of tempered glass for frameless doors is 8mm, 10mm or 12mm. It does not mean that the one hinge can be moved freely with respect to the other two. The Thickness of the gasket, clamping plate and screw is small. If a hinge for 8-10mm glass is designated, it must not be used with 12mm glass without a new compatibility test, and otherwise, it will be considered a serious deviation.
Wall-to-Glass or Glass-to-Glass?
Wall-to-Glass Hinges
Wall-to-glass hinges are placed at the wall fasteners for the moving door. Therefore, there should be support for what is behind the tile at the hinge. Insufficient support, incorrect anchoring or a lack of attention during installation cannot be solved by purchasing high-quality hinges.
Glass-to-Glass Hinges
Glass-to-glass hinges transmit the moving-door load to a fixed glass panel. The Style of the picture is simple, but the Structure of the fixed panel still requires improvement. Therefore, clamps, channels and support bars can be added to the hinge solution, but they are separate pieces of equipment.

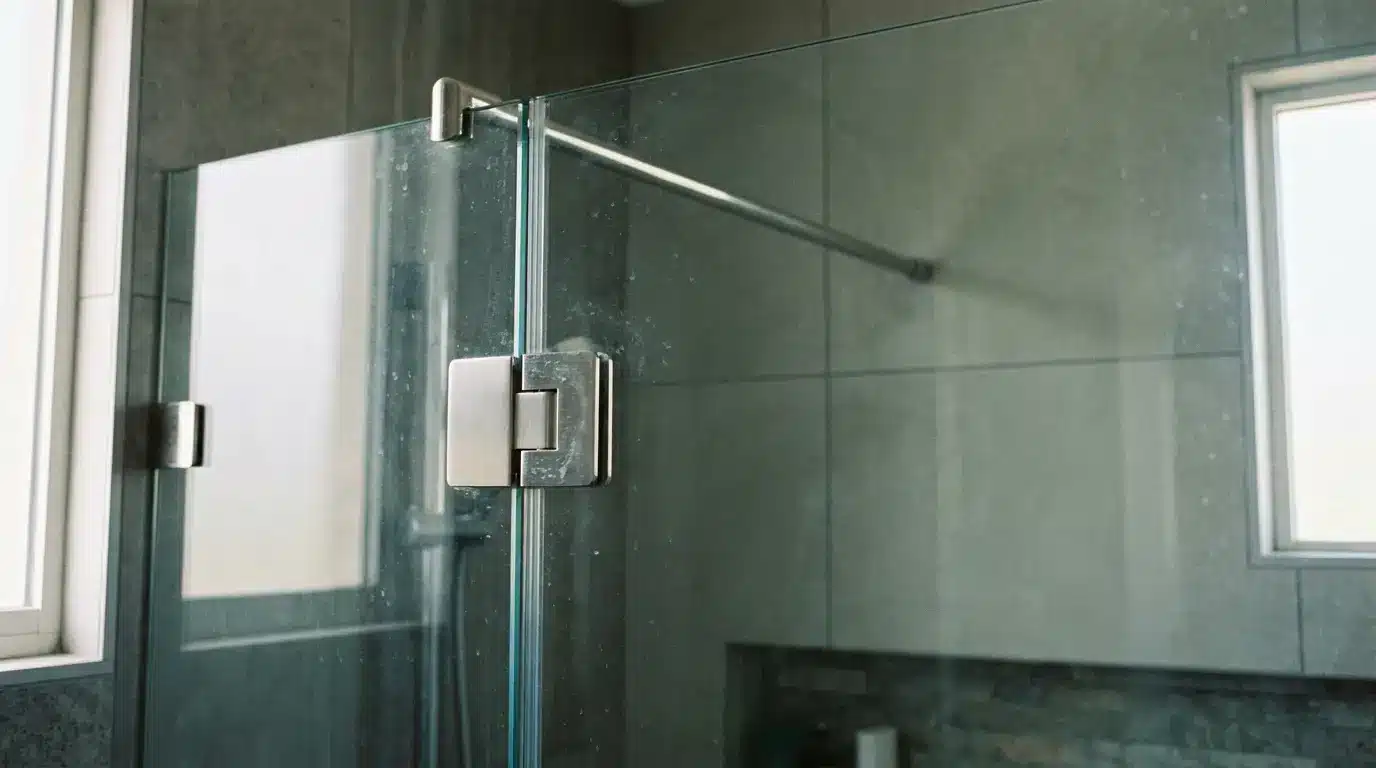

Glass Clamps and Support Bars Stabilize Fixed Panels
Glass clamps fix the stationary panel to the wall, floor, etc. Based on the thickness of the glass, fixed-position requirements, panel size, material and finish, select a clamp. A relatively large fixed panel may not be required to add a new clamp. At some times, the support bars or other restraints are needed in more convenient locations on the panel.
Support bars are used to support the walk-in panels and large frameless enclosures, and they usually have a top glass. Their Positions will be set before the processing of the glass. If the decision is postponed until the site of installation, the bar may block the holes for other fittings or the finished wall surface.
Handles Affect Comfort and Clearance
Handles are added later; they are the last to be added. They will alter the perception of space and quantity for a door in actual use. A long pull handle is usually attached to a large arc of a hinged or pivot door, and it is often placed near a wall, towel rail, etc. All the starting Paths need to be verified before setting the handle length and hole positions.
Back-to-back pulls, square and round tubular handles, knobs, and handle-and-towel-bar sets are generally employed. Although the finishes of the handles, hinges, clamps and support bars are the same, different suppliers may produce various shades or colours of sheen in the finished products when placed next to each other.
Do Not Treat Shower Door Seals as an Afterthought
A Seal is only effective when there is a gap of glass. If the clearance is too small, the bottom vertical or magnetic seal will be displaced or damaged; otherwise, it will not be possible to achieve an airtight seal. In other words, based on the location of the hinge and clamp, select a seal, and then release the final glass size.
Choose Materials for the Environment
Stainless steel is often used to build the shower area because it is durable and hygienic. SS304 is used in many standard indoor bathrooms. SS316 is used in some areas of the sea with high chloride content. The main problem is that one needs to be in harmony with the environment, not just look good.
Only the visible cover is included in the story. Inquire about the use of hinge bodies, pivot pins, screws, clamping devices, support brackets, etc. A stainless-steel cover does not mean that all the interior and supporting structures are also stainless steel.
Keep the Finishes Consistent
Mirrored Polished, Satin, Brushed; Matte Black, Gold and Gunmetal are also popular choices. There are differences in the quality of components from various places; for example, the two matte-black parts have different glosses, and the gold finishes are not uniform. For a large-scale project, take a small sample of the actual product from before the main order to check for defects.
Confirm Glass Preparation Before Tempering
Tempered glass cannot be drilled or cut after tempering; therefore, the hardware drawings must be correct before production begins. Verify the hinge cut-out, hole diameter and spacing, handle centre and clamp position and edge distance of the fittings to be supplied.
The two hinges in the catalogue are almost the same, but their cut-outs are slightly different. Even a slight difference after tempering of the glass will not be observed at the construction site. At that time, a small modification to the hardware could achieve a full-glass replacement.
Think of the Hardware as One System
A good-quality hinge is not suitable for a good frameless shower enclosure. All the hinges, fixed-panel supports, handles and seals need to be used together. Even if the hinge is at an advantageous position, it will still be abnormal if the fixed panel shifts, the handle makes contact with another surface, or there is a gap in the seal.
For recurring projects, the same set of hardware for hinges, handles, clamps, support bars and seals can be used conveniently. AOYU HARDWARE, for example, has grouped the shower-door components by type to simplify the selection of specifications and finishes for the same parts in multiple bathrooms.
A Simple Shower Door Hardware Checklist
Item | What to Confirm |
Glass Thickness | Correct thickness range for each fitting |
Door Size | Height and width used for hinge selection |
Door Weight | Within the recommended hardware limits |
Layout | Wall-to-glass, glass-to-glass, pivot or sliding |
Hinges | Opening direction, mounting arrangement and load suitability |
Fixed Panels | Clamp, channel, profile or support-bar requirements |
Handles | Size, mounting position and full opening clearance |
Seals | Correct gap, seal type and profile |
Material | Suitable grade for the installation environment |
Finish | Consistent tone and gloss across visible hardware |
Glass Drawings | Finalized and checked before tempering |
When Should Existing Shower Hardware Be Replaced?
Refurbishment does not require replacing all the fittings automatically. The Handles and Seals can often be replaced separately. The Hinges should be close to the positions of the existing glass cut-outs and holes, and aligned with them. If they are different, then a hinge replacement will also need new glass.
Sometimes it is more convenient to replace several items at the same time; for instance, if the original finish has gone out of production or some fittings need to be replaced. The goal is not to force a new part to fit by any means necessary, but rather to keep the whole operation of the enclosure running normally.
Final Thoughts
The clean appearance of a frameless shower is the result of many choices that are not visible after the construction. Set the Glass Layout and Door Dimensions first. Based on the above arrangements, inspect the hinges, fixed-panel supports, handles and seals; verify their material grade and finish; check the details of glass processing; and then conduct tempering. A few checks at this time can save a significant amount of site adjustment later on, and otherwise, a new glass panel would have to be manufactured.
